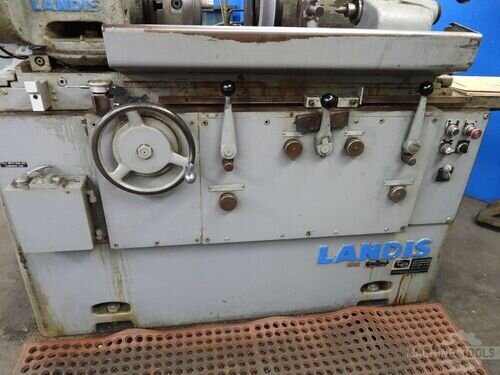

1R LANDIS 10x20 CYLINDRICAL UNIVERSAL GRINDER                                                                                                                    S/N 858-45    Year: 1975 STANDARD CATALOG SPECIFICATIONS Nominal work swing................................. 10" Nominal distance between work centers.............. 20" Maximum diameter work standard machine will grind with full size standard wheel.................................... 10 7/8" Minimum diameter wheel to grind zero diameter work on centers........................................... 10 1/2" Floor space required............................... 106" x 50" Coolant tank capacity in gallons................... 19 Hydraulic tank capacity in gallons................. 9 1/4" Height from floor to work centerline............... 41 3/4" WORK CARRIAGE Traverse speed, inches per minute.................. 2"   240" Carriage traverse per turn of hand wheel........... 0.200" Swivel graduated, inches per foot.................. 4" Degrees included angle............................. 20 Degrees Work rest capacity................................. 1/4" to 4" HEAD STOCK & FOOT STOCK Head stock work center............................. #10 Jarno Foot stock work center............................. # 6 Jarno Head stock swivel range............................ 120 Degrees Work speeds, RPM.................... 60, 90, 150, 225, 400, 600 Diameter hole thru spindle......................... 1" Head stock spindle nose............................ 5A2 WHEEL HEAD & WHEEL FEED Grinding wheel size........................... 12" x 1" x 5" Minimum diameter of worn wheel................ 7 1/2" Maximum distance wheel centerline to work centerline for machines w/hydraulic infeed.... 12 1/2" Minimum distance wheel centerline to work centerline with foot stock removed............ 3 1/2" Work diameter reduction per revolution of hand wheel.................................... .100" Per revolution of fine feed knob.............. 0.001" Minimum feed graduations on diameter.......... 0.000050" Maximum hydraulic infeed on diameter For machines with hydraulic infeed............ 0.090" Rapid infeed stroke........................... 1" Grinding wheel head swivel range.............. 90 Degrees each ELECTRIC MOTORS Wheel drive motor............................. 3 HP - 1735 RPM Work drive motor.............................. 1/3 HP 220/440 V Wheel spindle lubrication motor............... 1/4 HP Coolant pump motor............................ 1/10 HP Hydraulic pump motor for machines w/hydraulic traverse and/or hydraulic infeed.............. 1 HP Internal grinding spindle motor............... 1 HP EQUIPPED WITH L.H. & R.H. Tarry. Hydraulic table travel. Swivel head stock. Universal head stock. Bijur one shot lube. Coolant pump and tank. This is one of many Landis "R" series we have in stock.  If this machine doesn't fit your requirements, please ask your salesman about other machines. Specifications are deemed accurate, however, subject to verification or prior sale. All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.   If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
