Gantry Machining Centers (incld. Bridge & Double Column)JOBS 11 (INNSE-JOBS)
Niedersachsen, GermanyOverview
Brand
Model
ID #
616729
Condition
Used - Good
Year
2008
Location
Niedersachsen
Germany
Germany
Return Policy
as-is
Stock #
V(F)-6965

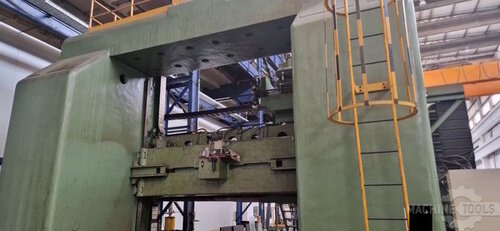

5-Axis CNC Double Column Portal Type Milling Machine.
JOBS 11 (INNSE-JOBS).
Completely remanufactured by JOBS in 2008.
Siemens 840D Power Line CNC control.
Distance between the columns 3500 mm.
Distance under the Crossrail max. 1850 mm.
Travels: X 12000 mm. Y 3500 mm. Z 1700 mm, W 1000 mm.
Spindle: ISO 50. 30 KW. 4000 rpm.
Head: 3 x Heads. Vertical head. 2-Axis Universal NC milling head. Right angle head. Head changer.
32 station tool changer.
Proposal Number V(F)-6965
Convert Specs to Metric
| X | 472.44" |
| Y | 137.8" |
| Z | 66.929" |
| Power | 40.2 hp |
| RPM | 4,000 RPM |
| Table-W | 118.11" |
| Table-L | 12,000" |
| # ATC | 32 |
| Taper | ISO 50 |
| Control | CNC (Siemens 840D Power Line) |
