Taper Attachment 4-Way Rapid Traverse 2-Speed Drive Tailstock Quill Hydraulic Brake System T-Slot on Tool Slide Hardened and Ground Bed and Cross Slide Ways Pull Drawer Chip (Coolant) Pan Rear Chuck Adapter Installed Coolant System with Pump and Piping Front & Rear Chucks

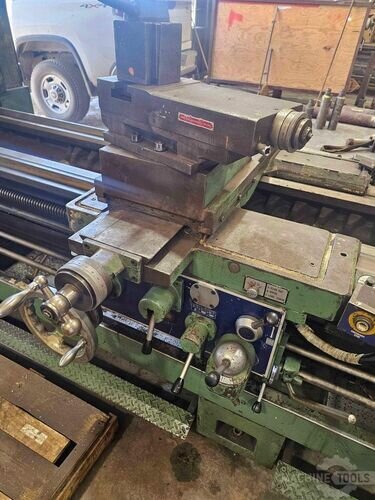

Kingston Heavy Duty 34" x 120" Big Bore Lathe (2013) Swing Over Bed (In.) 34 Swing Over Cross Slide (In.) 25.1 Swing Over Gap (In.) 45.6 Distance Between Centers (In.) 120 Width of Bed (In.) 22 Height from Floor to Work Center (In.) 48.6 Spindle Through Bore (In.) 9.25 Spindle Nose: ASA-A2-15 Headstock Spindle Adaptor: ASA-450 to MT#6 Number of Spindle Speeds 16 Range of Spindle Speed (RPM) 9-600 Number of Feed Changes Fine Normal Coarse 20 40 30 Range of Feeds per Revolution - Longitudinal (In.) .00048 - .0168 Range of Feeds per Revolution - Cross (In.) .00024 - .0084 Diameter and Pitch of Leadscrew (Diameter | TPI) 1.9 | 2 Number of Inch Threads 40 Range of Inch Thread (TPI) 2 - 28 Number of Inch Threads - Coarse 16 Range of Inch Thread - Coarse (TPI) 5/8 - 8 Number of Metric Threads 31 Range of Metric Thread (mm) 1 - 14 Number of Metric Threads - Coarse 61 Range of Metric Thread - Coarse (mm) 16 - 200 Number of Module Pitch Threads 20 Range of Module Pitch Thread (M.P.) .5 - 7 Number of Module Pitch Threads - Coarse 30 Range of Module Pitch Thread - Coarse (M.P.) 8 - 56 Number of Diametral Pitch Threads 40 Range of Diametral Pitch Thread (D.P.) 56 - 4 Number of Diametral Pitch Threads - Coarse 30 Range of Diametral Pitch Thread - Coarse (D.P.) 3.5 - .5 Compound Slide Travel (Max./In.) 9.4 Cross Slide Travel (Max./In.) 21.2 Tailstock Quill Travel (In.) 11.8 Tailstock Quill Diameter (In.) 5.1 Tailstock Quill Taper MT-6 Tailstock Quill Speed Ratios 1:1 | 4:1 Main Drive Motor (HP | kW) Power: 30 HP, 230V/460V, 3 Phase, 60 Cycle Motor, Switch and Wiring Complete
